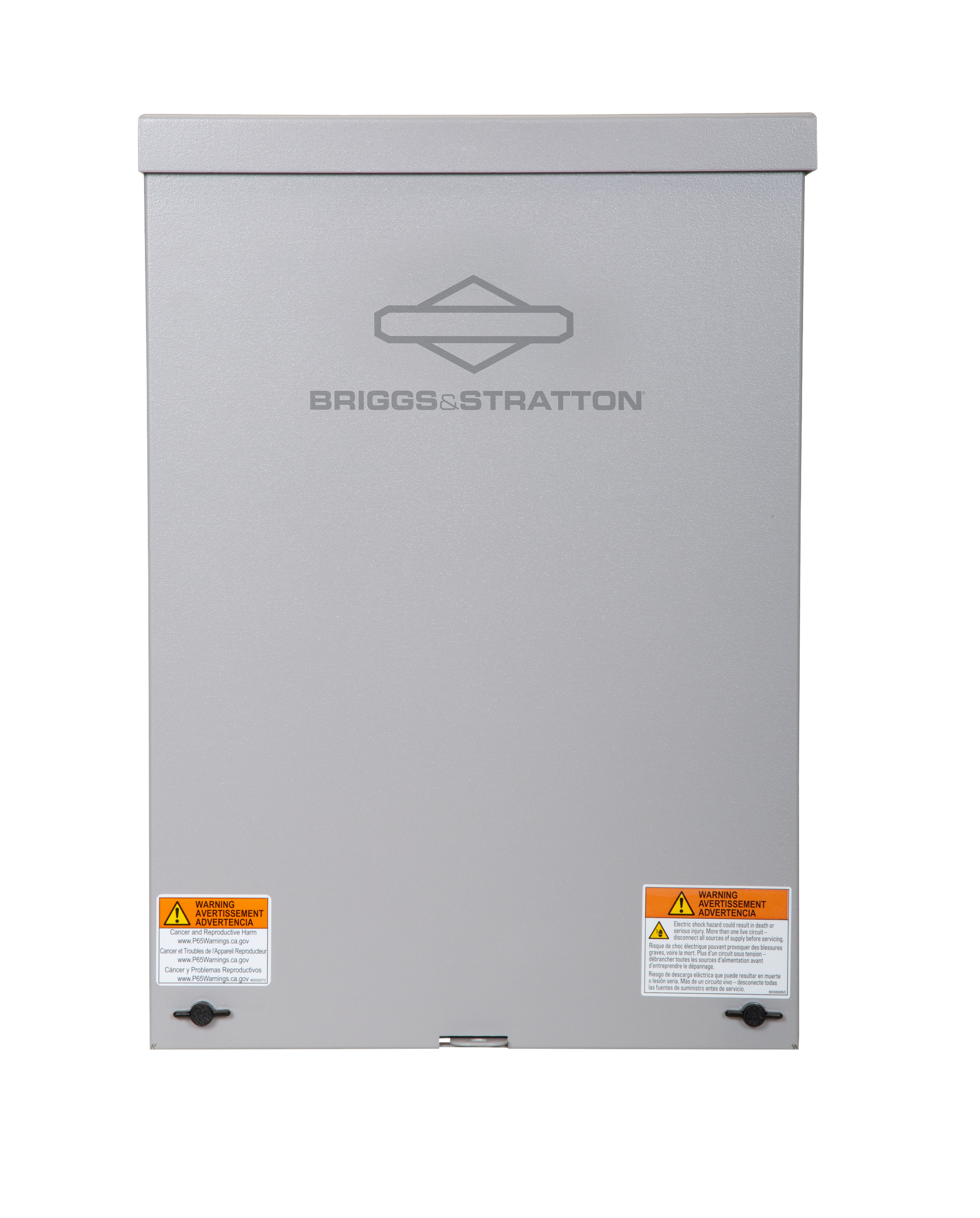

This device stands guard and senses when utility power flowing to your home is interrupted, then automatically turns on your Briggs & Stratton standby generator.
To learn more, download the Briggs & Stratton spec sheet for details on their residential automatic transfer switches.
Specifications
Model Number
071210
Limited Warranty
7 years
Rated AC Voltage (VAC)
120/240 VAC
Frequency (Hz)
60
Number of Poles
2
Phase
Single
Power Management
Symphony Choice (Model 6907) Compatible
Operating Ambient
-20° - 120°F (-28° - 49°C)
Current Rating
100
SED Rated
Yes
Utility Breaker Rating (amp)
100
Breaker Withstand Rating
22000
Enclosure Type
NEMA/UL 3R
Enclosure Material
Galvannealed Steel
Coating Color
Stone Gray Texture
Load Transition Type (Automatic)
Break Before Make
Controller Type
Basic Relay Logic Board
Brown-out Protection
Yes
Outage to Standby Power Time
26 Second
Utility Voltage Pickup
80%
Utility Voltage Drop-Out
85%
Lug Range - Utility
#6 - 1/0
Lug Range - Generator
14AWG - 1/0
Lug Range - Load
14AWG - 1/0
UL Listed per UL1008 & UL50e
Yes
cUL
Yes
544K Specification
Yes
97K Label Specification
Yes
Proposition 65 California
Yes
NFPA 70 2020 National Electric Code
Yes
Assembled Dimensions
(Length x Width x Height) 20.0” L x 14.5” W x 7.0” H
Assembled Weight
36 lbs
Packaged Dimensions
(Length x Width x Height) 21.0” L x 15.3” W x 8.5” H
Packaged Weight
39 lbs
